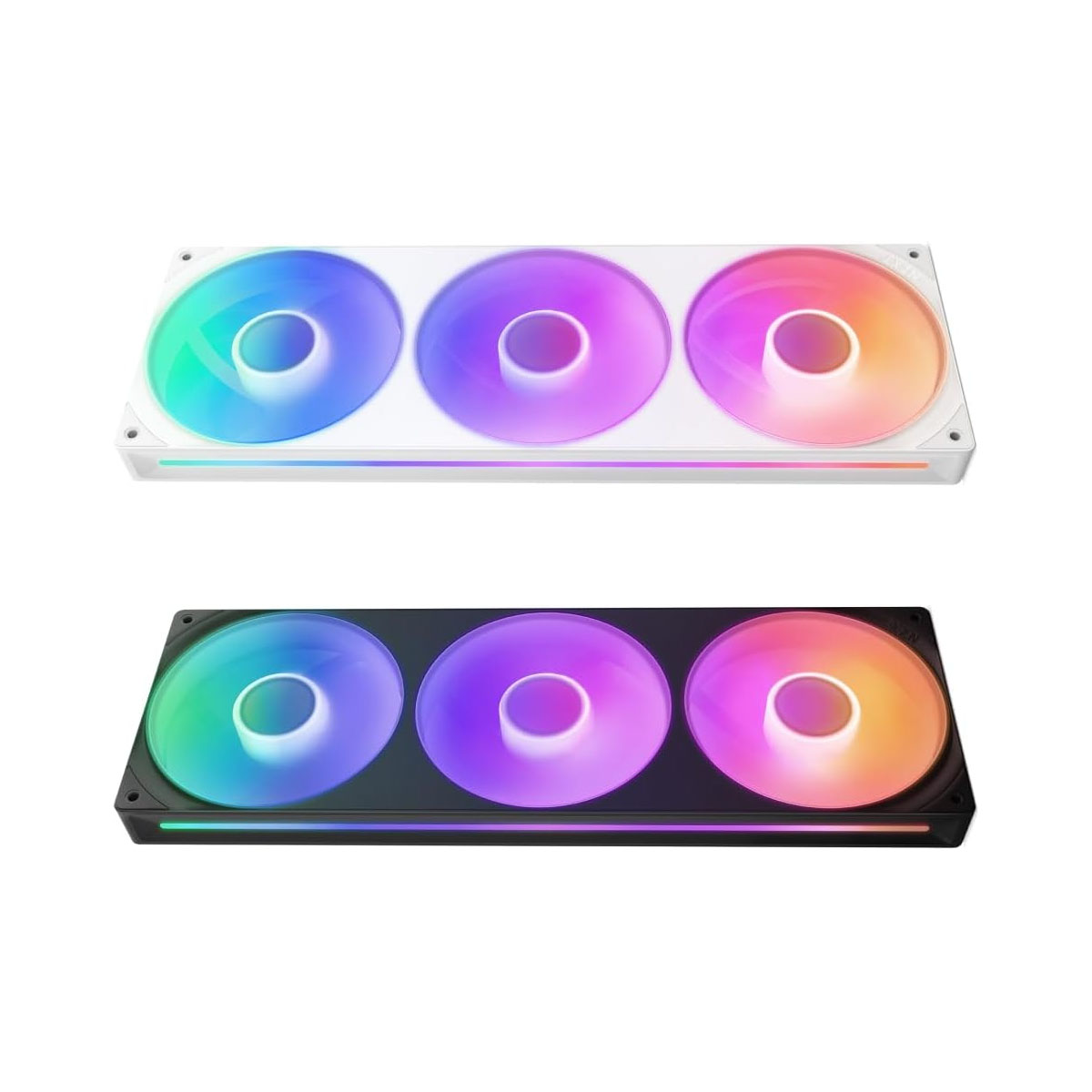

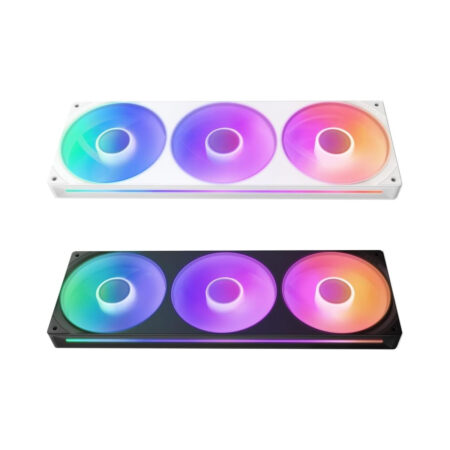

NZXT F360 RGB Core – 360mm Single-Frame RGB Fan Unit with 3 x 120mm RGB Fans

NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling

Why we like it

Here are the features that made us like this product:

  • Seamless Installation: The single-frame design with integrated fans simplifies setup and reduces cable clutter
  • Efficient Cooling: The fan blade design boosts static pressure, ensuring optimal airflow and efficient cooling
  • Customizable RGB Lighting: Eight individually-addressable RGB LEDs per fan hub allow for vibrant and customizable lighting effects

When you purchase through links on our site, we may earn an affiliate commission. Learn more

NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling, whisper-quiet performance, and striking RGB visuals.

Key features:

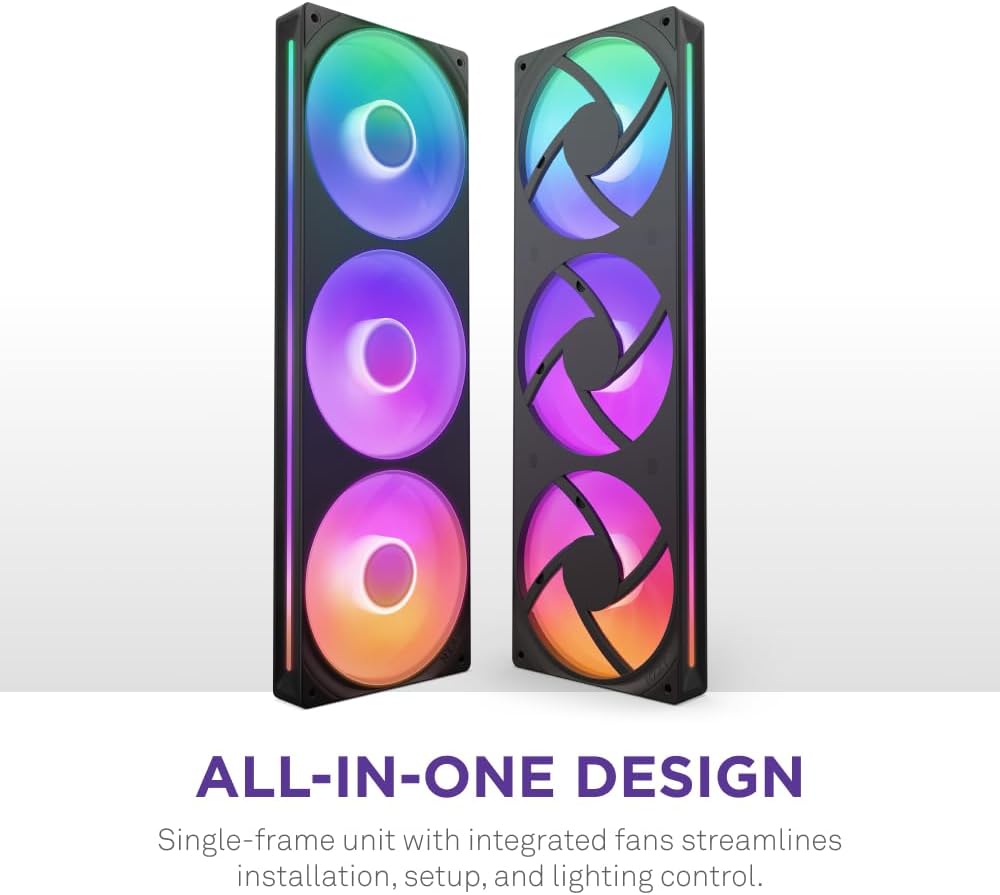

ALL-IN-ONE DESIGN – Single-frame unit with integrated fans streamlines installation, setup, and lighting control—no need to connect individual fans.

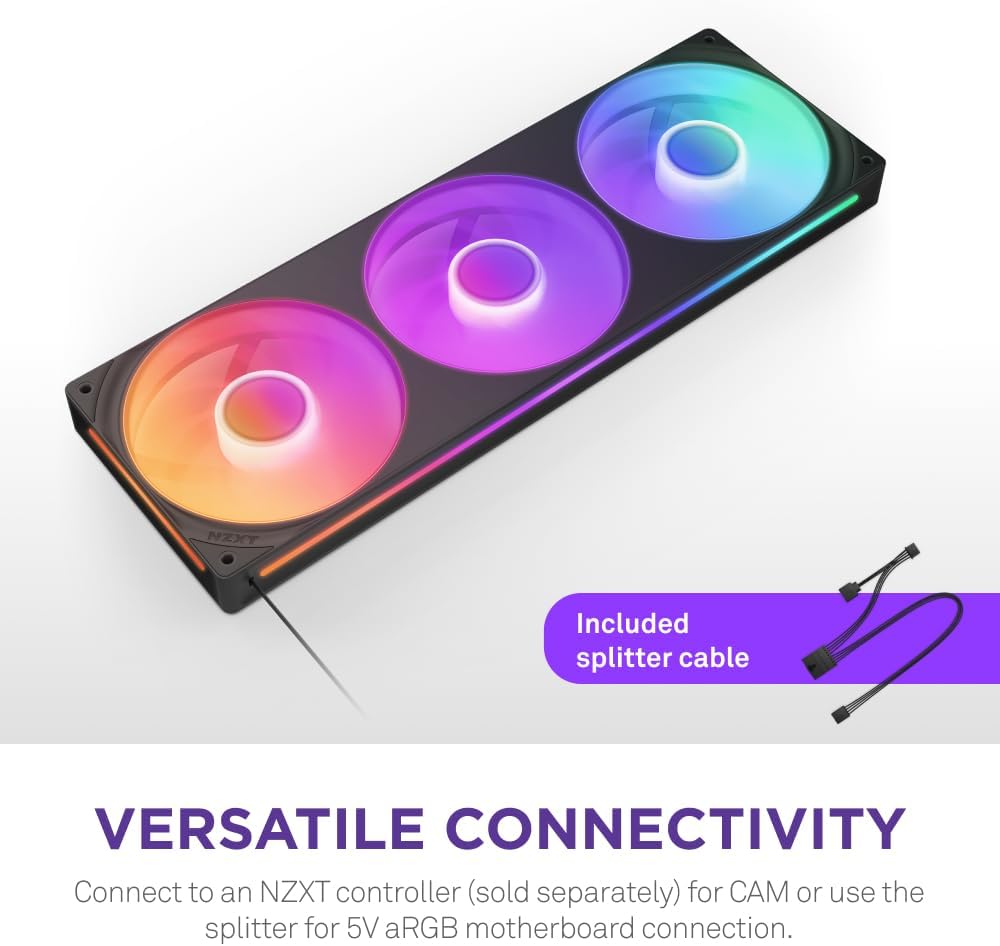

VERSATILE CONNECTIVITY – Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard’s 5V ARGB header using the included splitter cable.

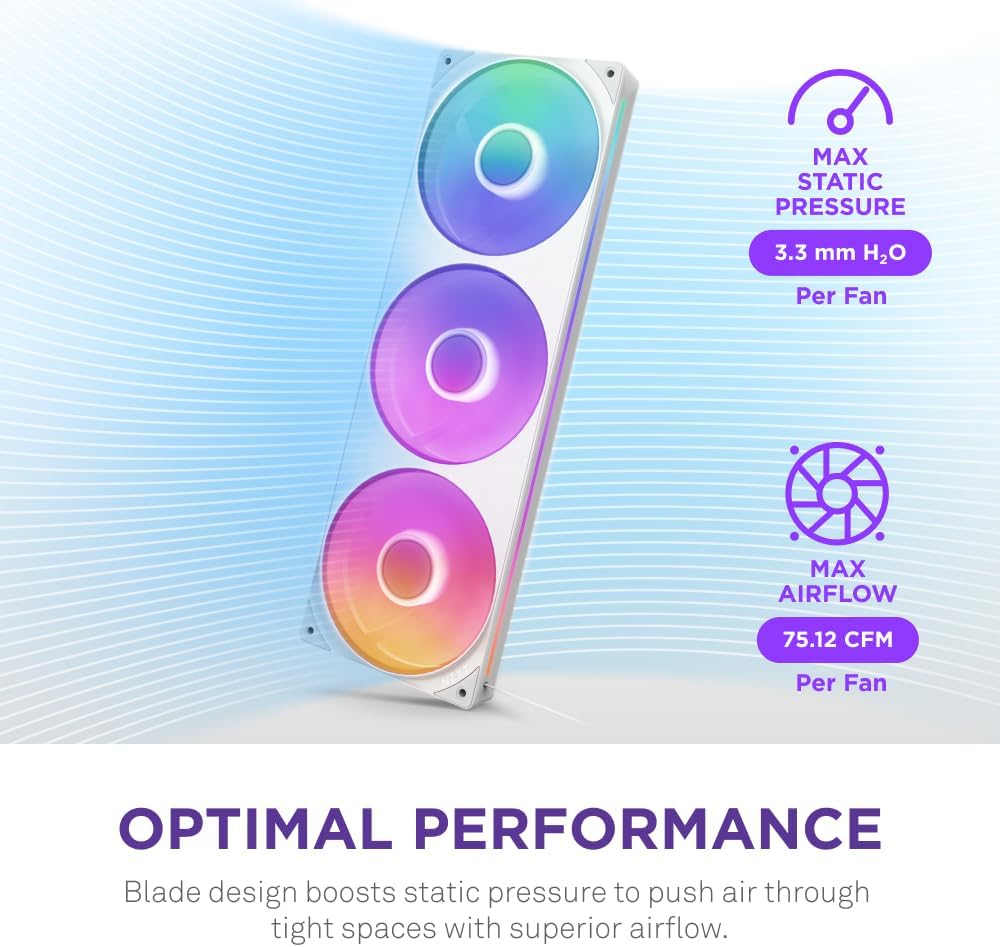

OPTIMAL PERFORMANCE – Fan blade design boosts static pressure to push air through tight spaces while ensuring optimal airflow. Suitable for both intake and exhaust.

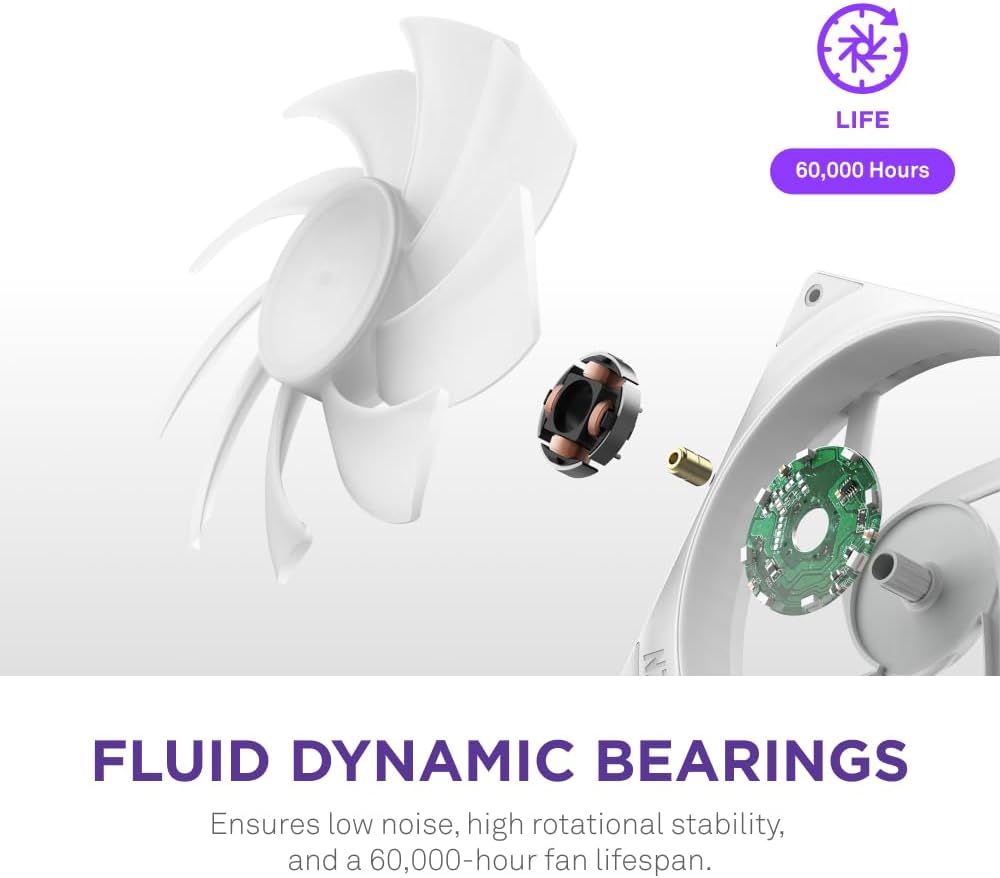

SILENT & DURABLE – Fluid dynamic bearings ensure quiet, stable operation across an exceptional 60,000 hour lifespan.

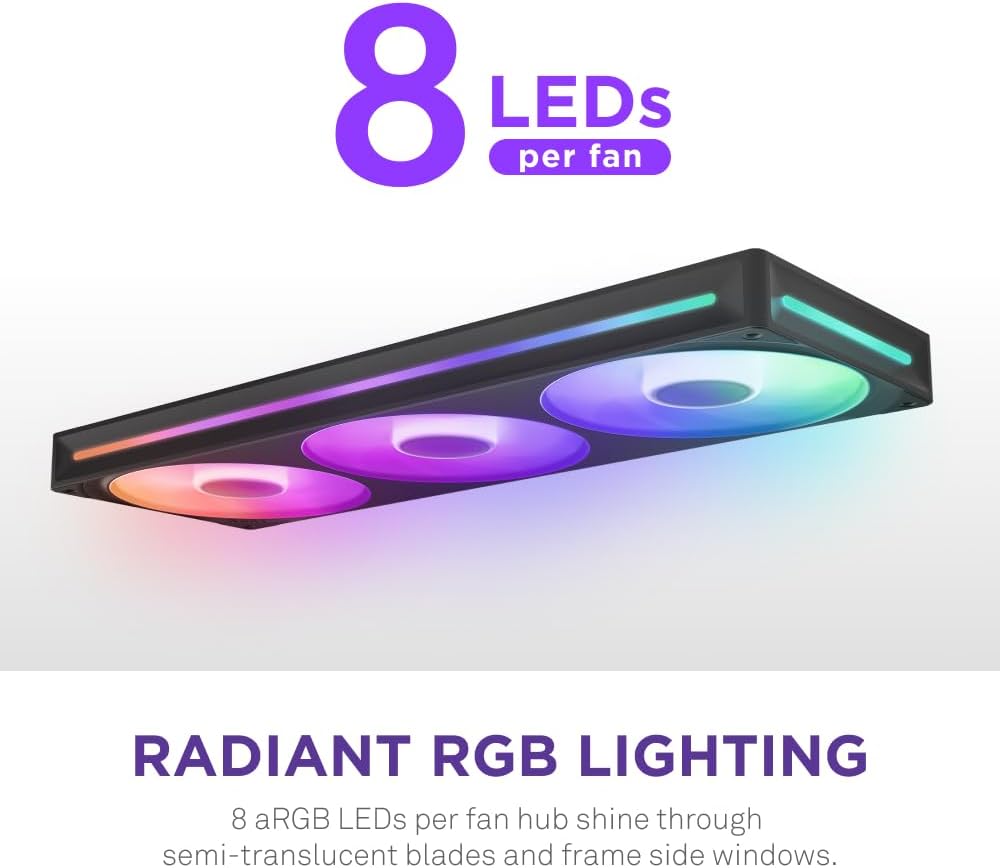

VIBRANT LIGHTING – Eight individually-addressable RGB LEDs per fan hub are diffused through semi-translucent blades for brilliantly colourful visuals.

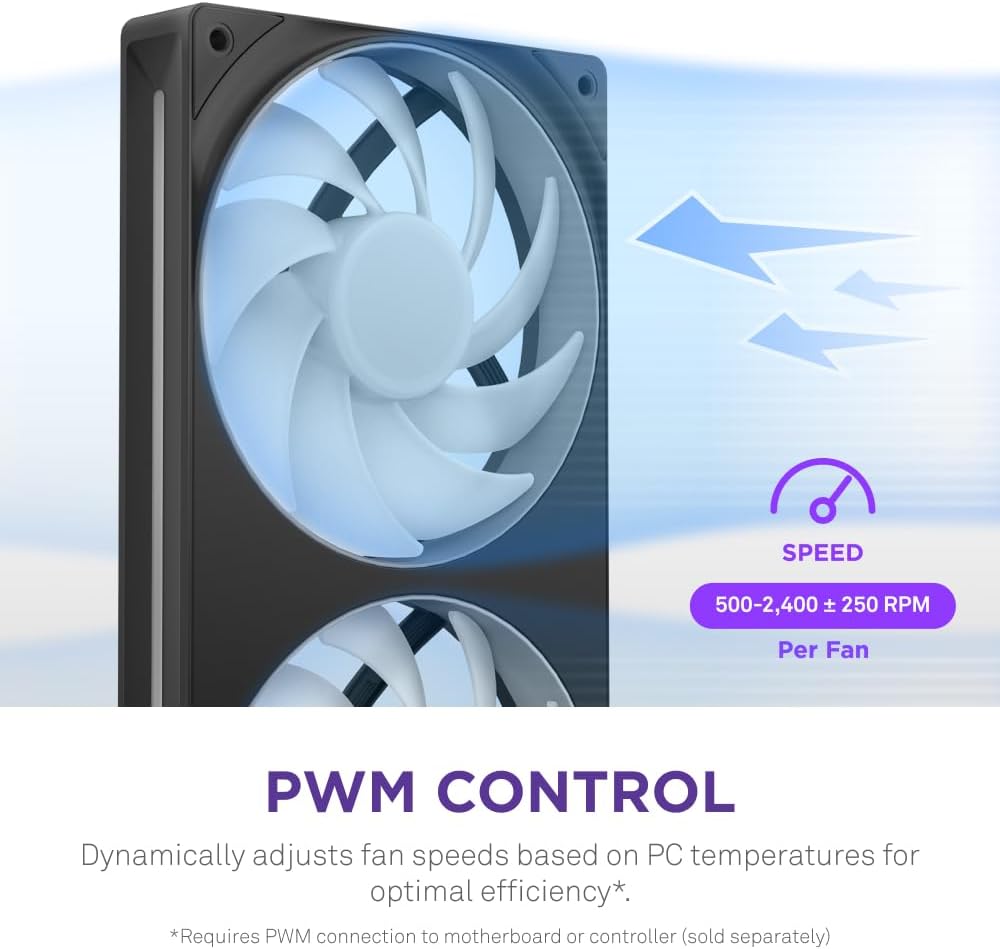

PWM-controlled fans dynamically adjust spinning speeds based on PC temperatures for optimal efficiency and reduced noise.

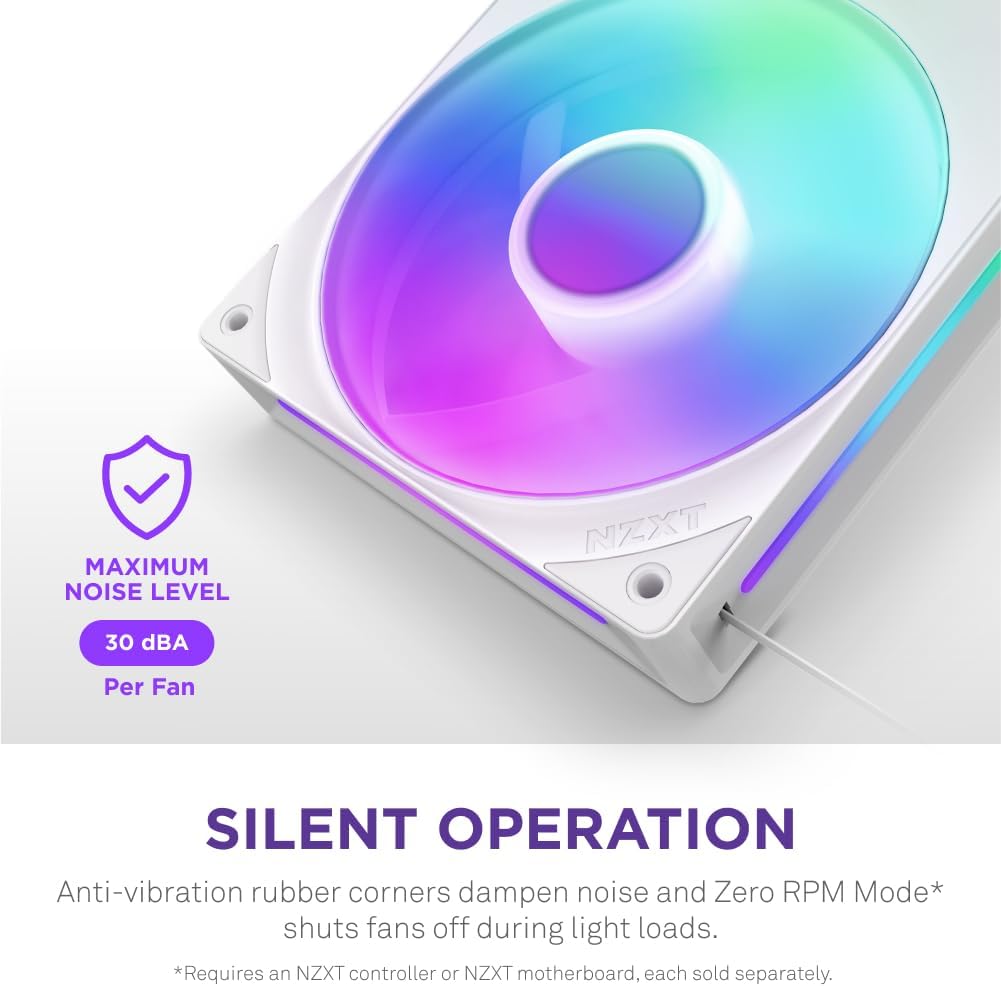

SILENT OPERATION – Anti-vibration rubber corners effectively eliminate noise caused by vibrations for hushed performance at any speed.

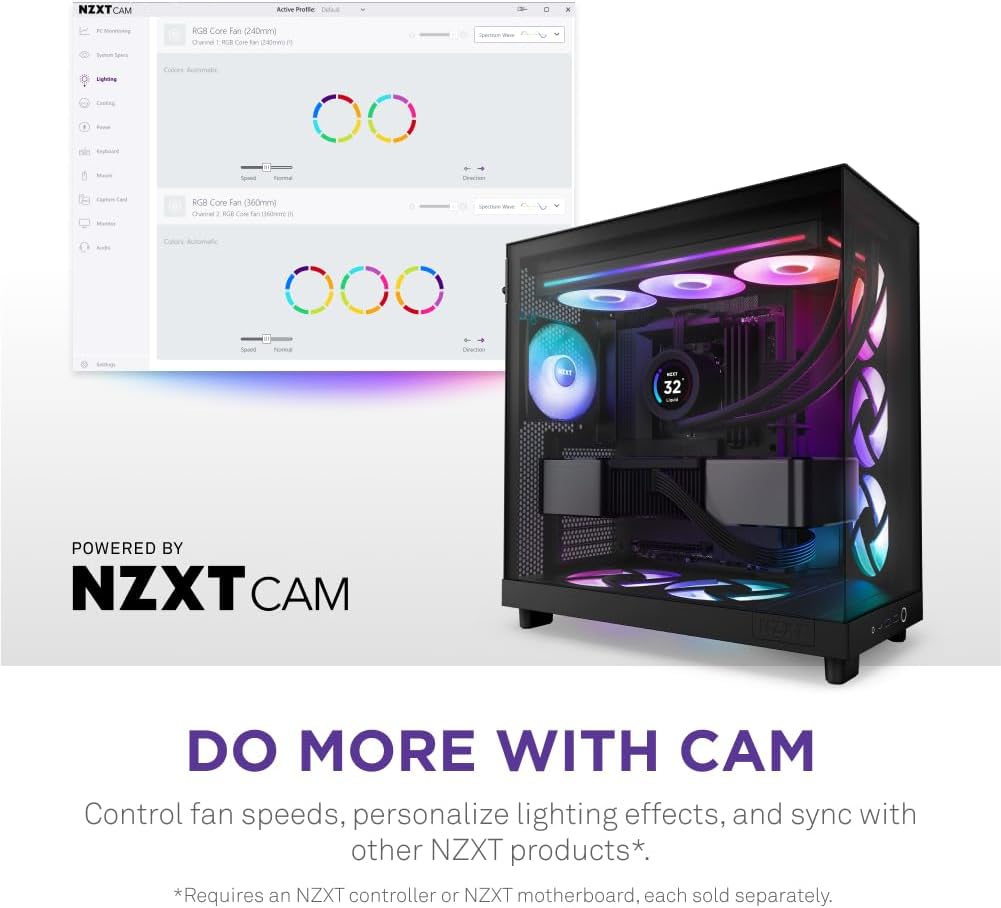

Do More with NZXT CAM – Control lighting and fan speeds via CAM software when connected to an NZXT controller (sold separately).

Inside the Box

  • RGB Core Fan x1
  • Mounting Screws x4
  • Splitter Cable x1

Fans

Speed: 500 – 2,400 ± 250 RPM per fan
Airflow: 75.12 CFM per fan
Static Pressure: 3.3 mm H₂O per fan
Noise: 30.00 dBA per fan
Power Consumption: 12V DC, 0.79A, 9.48W / 5V DC, 0.81A, 4.05W
Bearing: Fluid Dynamic Bearing
Output LED: 8 LEDs per Fan
Connector: 8-pin for PWM & RGB
Cable Length: 1 x 600 mm
Material: Plastic, Rubber, PCB
Life: 60,000 Hours

Dimensions

Height: 360 mm
Width: 120 mm
Depth: 26 mm

Cable

Splitter Cable Connections & Cable Length: 4-pin PWM Fan Cable (1 x 300 mm) / 5V RGB & 4-pin NZXT RGB Cable (1 x 100 mm)

Warranty

5 Years

Colour

Black
White
