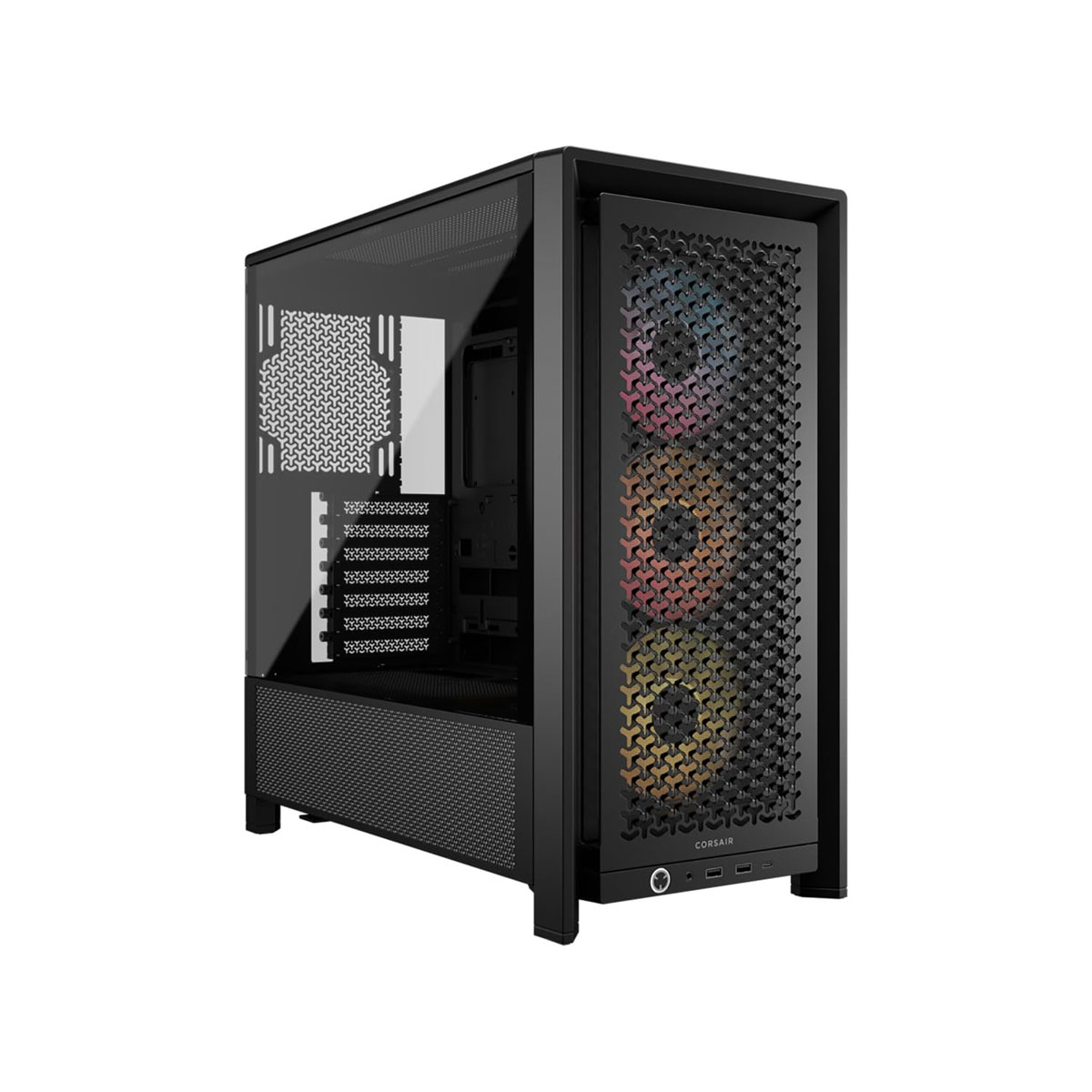

CORSAIR Frame 4000D RS ARGB Modular Mid-Tower ATX PC Case

The Corsair Frame 4000D RS ARGB is a modular ATX mid-tower case that combines high airflow and premium build quality at an affordable price.

Why we like it

Here are the features that made us like this product:

  • Fully-modular design
  • 3D airflow pattern for increased airflow and minimal resistance
  • InfiniRail™ Fan Mounting System provides amazing flexibility for front and roof fan configurations

When you purchase through links on our site, we may earn an affiliate commission. Learn more

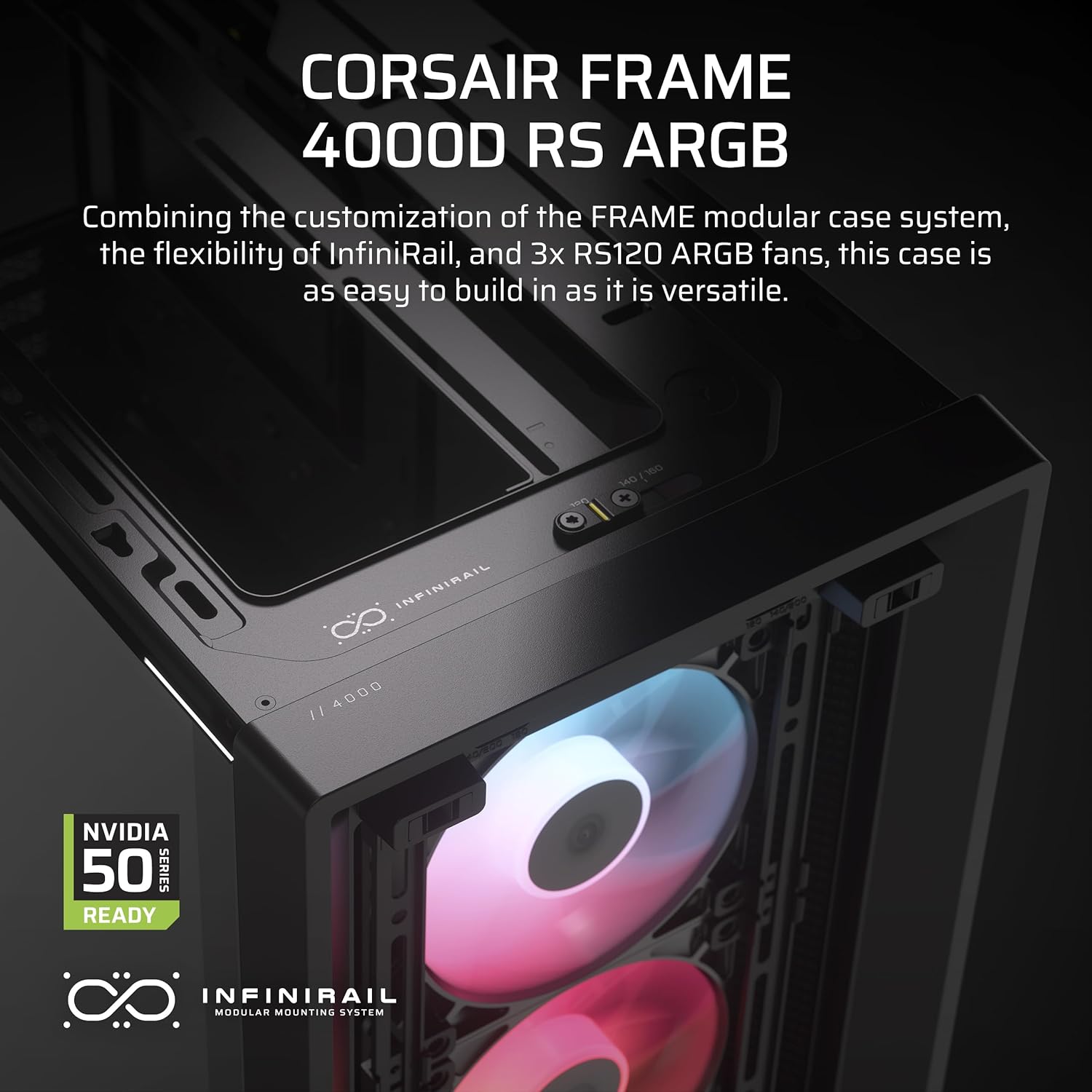

The Corsair Frame 4000D RS ARGB is a modular mid-tower case that combines high airflow, premium build quality, and user-friendly features at an affordable price. Designed for high-performance PC builds, it introduces InfiniRail, an innovative fan mounting system that allows for flexible placement of 120mm, 140mm, or even 200mm fans – no more relying on pre-set slots. The 3D Y-Pattern front panel optimizes airflow while adding a bold, modern aesthetic.

Key Features:

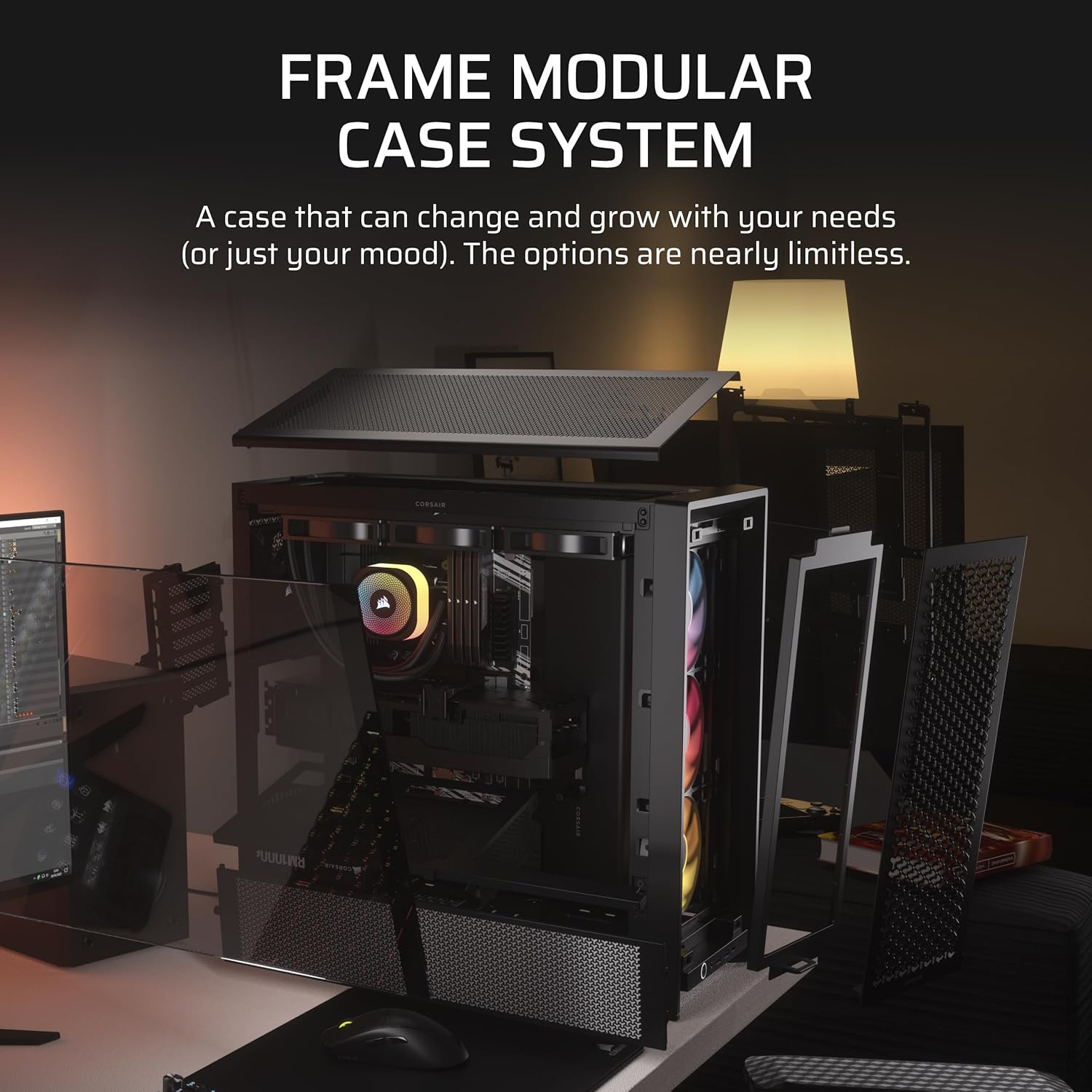

FRAME Modular Case System – The revolutionary FRAME system gives new meaning to the word customization. Want to upgrade the motherboard tray to billet aluminium? Want to swap out your front I/O panel for more USB ports? Now you can. A case that can change and grow with your needs (or just your mood). The options are nearly limitless

3x CORSAIR RS ARGB PWM Fans – High-performance fans pre-installed in the front of case. Support daisy-chainable 4-pin PWM connections and Zero RPM mode for near-silent operation at low loads. Each Fan has eight LEDs and easily controllable with your motherboard’s +5V ARGB connector

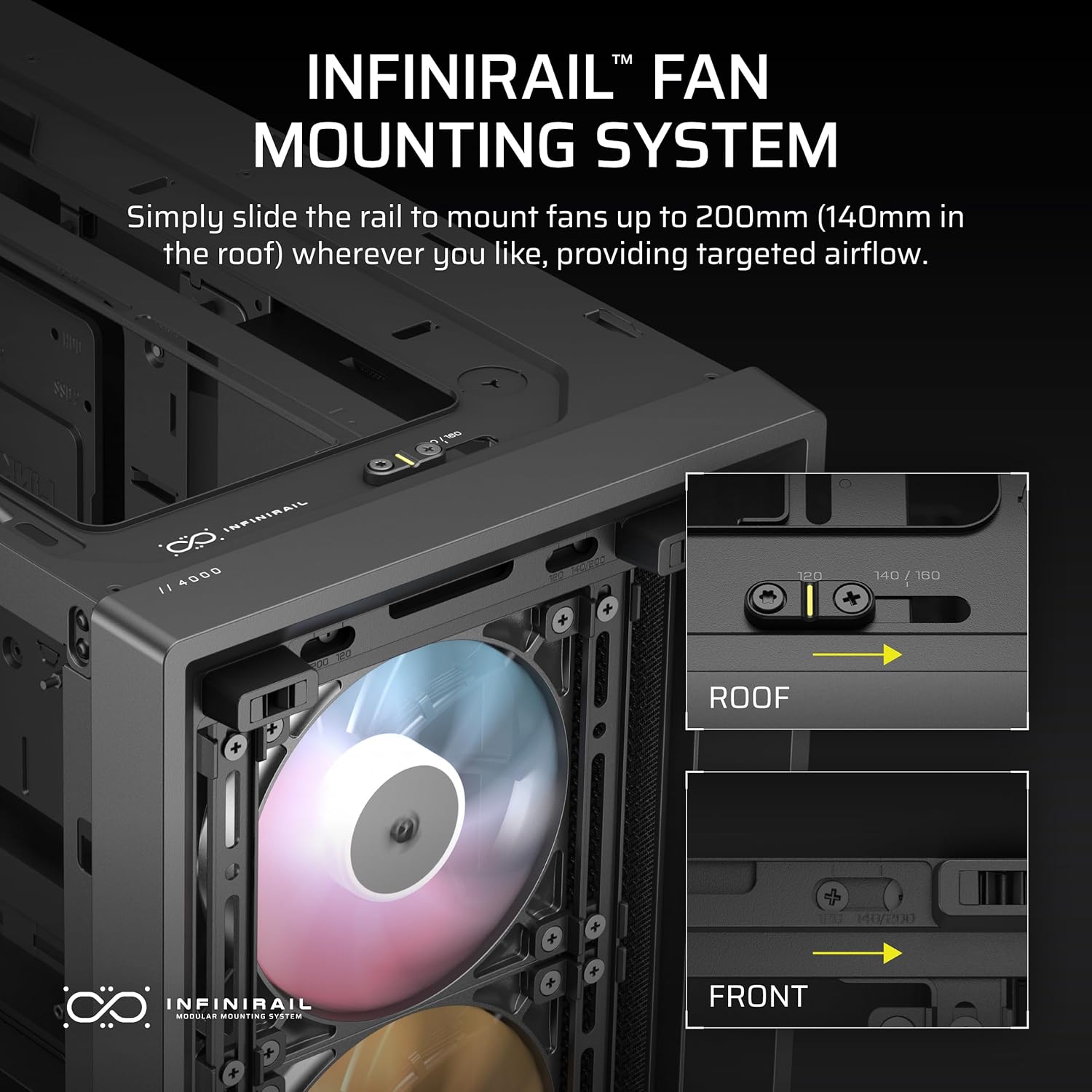

CORSAIR InfiniRail Fan Mounting System – This steel multi-point mounting system offers unmatched flexibility in front and roof fan configuration. Simply slide the rail to mount fans up to 200mm (140mm in the roof) wherever you like, ensuring targeted airflow

Clean Lines or Turbo Cooled – The internal side panel near the motherboard tray can be used as a cable cover for clean cable management, or you can remove it and mount fans to the side for increased cooling potential

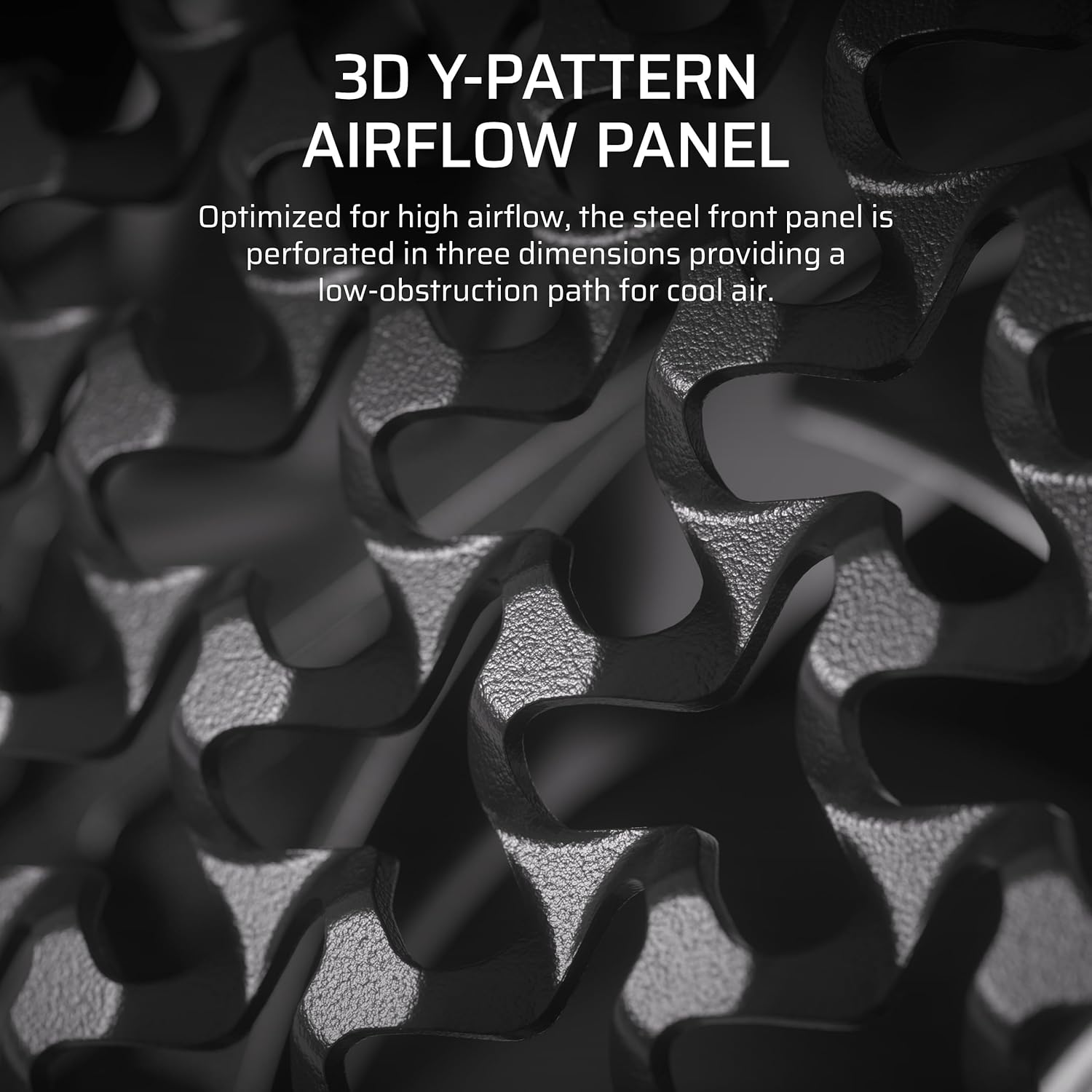

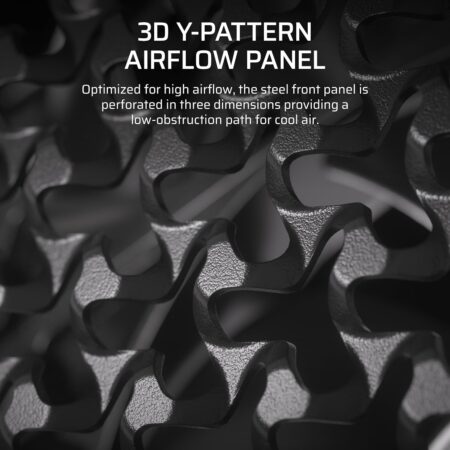

3D Y-Pattern Airflow Panel – The Corsair Frame 4000D is optimized for high airflow and minimal restriction. The steel front panel is perforated in three dimensions with a Y-pattern that provides a low-obstruction path for cool air

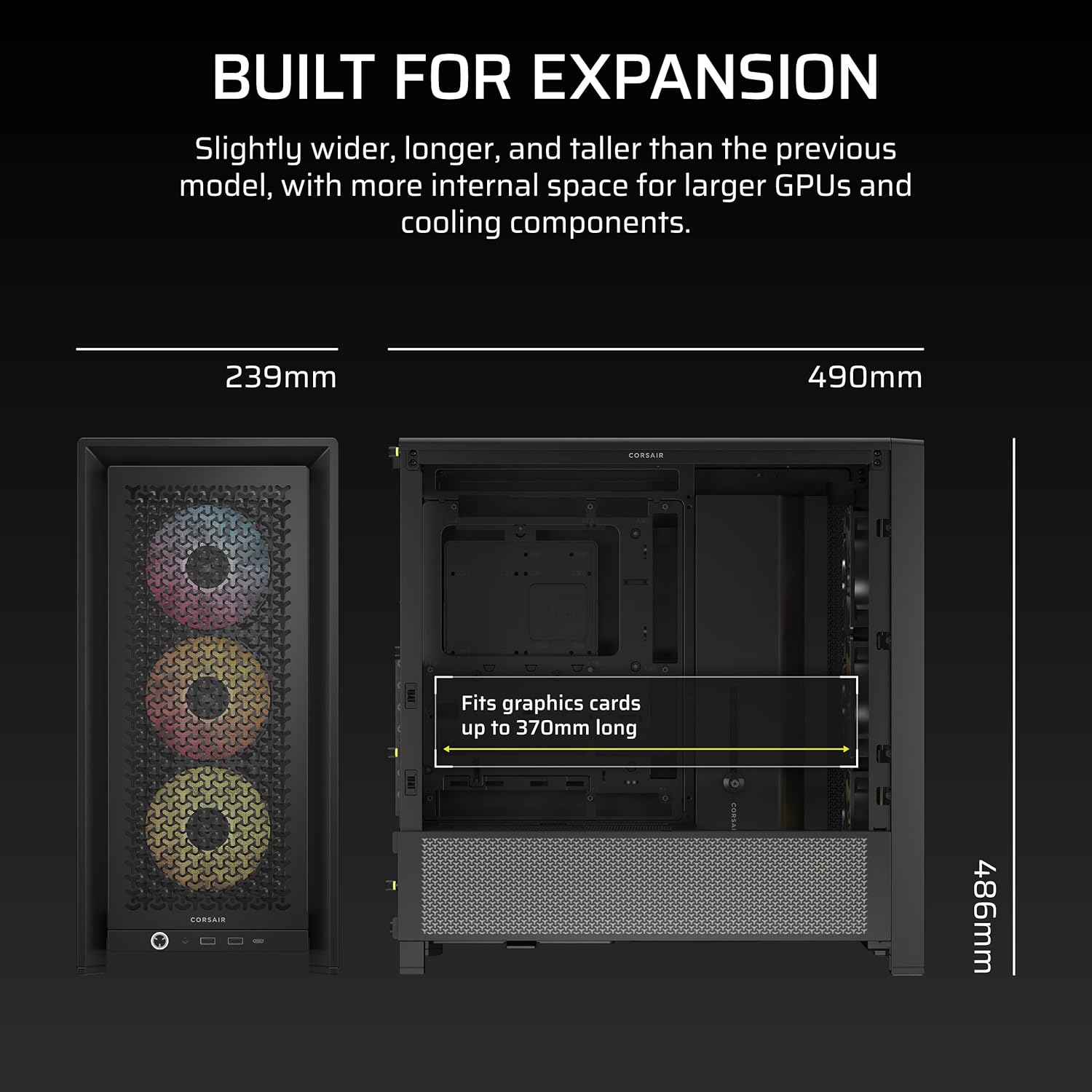

Dimensions

239mm x 490mm x 486mm

Weight

10.38 kg

Motherboard Support:

E-ATX (305mm x 277mm), ATX, Micro-ATX, Mini-ITX

Enclosure Type

Mid-Tower

Case Material

Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic

Compatibility & Clearance

Maximum CPU Cooler Height: 170mm
Maximum GPU Length: 430mm
Maximum PSU Length: 220mm

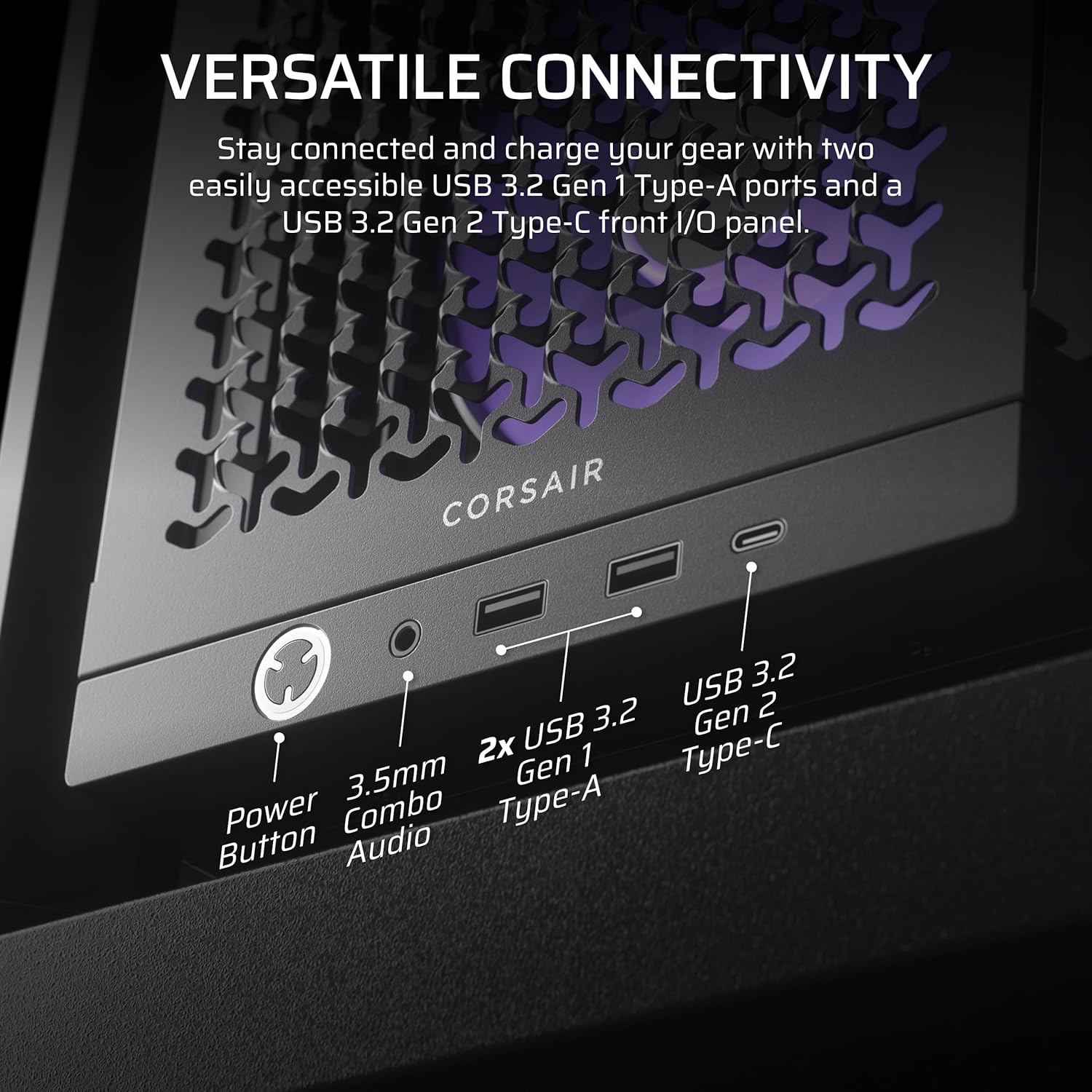

Front I/O Ports

1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL

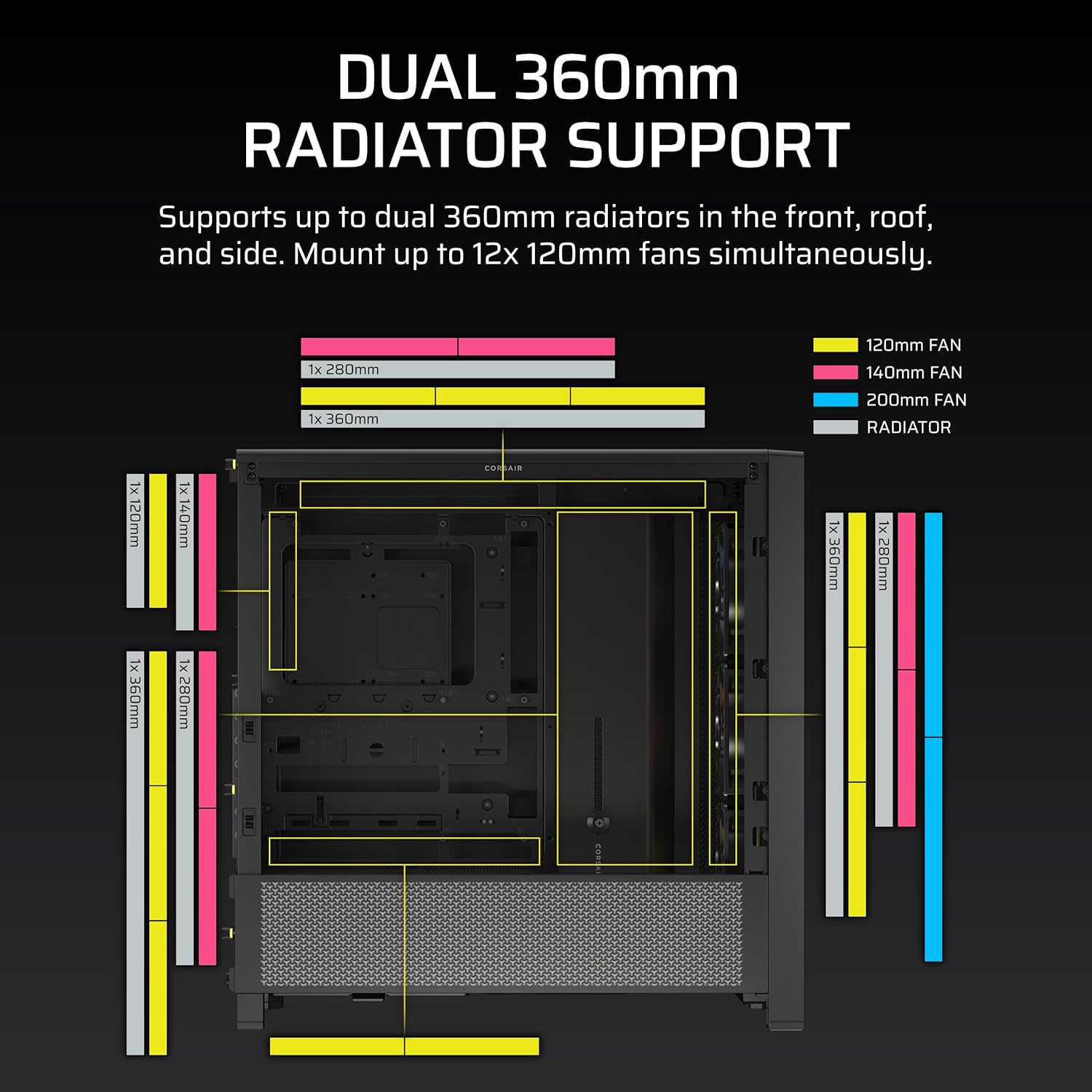

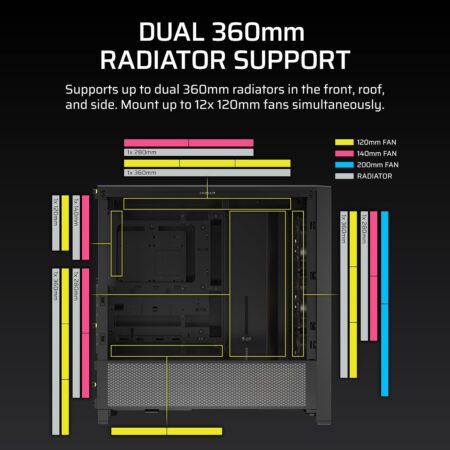

Radiator Compatibility

120mm, 140mm, 240mm, 280mm, 360mm

Expansion Slots

7 Horizontal or 3 Vertical

Case Drive Bays

(x2) 3.5in (x2) 2.5in

Warranty

2 Years
